Best Loader in the USA
Load up your valuable motorcycle with ease, and in minutes
be traveling on to new trails. No trailer needed.
Key Features
Strength/Size
- Engineered with Aerospace grade T6 6082 aluminum rails
- Supporting steel framework bright red orange powder coat
- 1200 lb Load capability
- Tilt ramp pulls in/out of vehicle with little effort
- Frame size: 98" L x 22" W
- 185 lbs w/o accessories
- Rear tire widths up to 300mm
Worm Drive
- Fin cooled, oil lubricated, serviceable worm gear drive
- Dual 5000 lb. loading straps
- Powered by 18V or stronger Cordless Drill (not supplied)
- Hydraulic cylinder assisted tilt feature

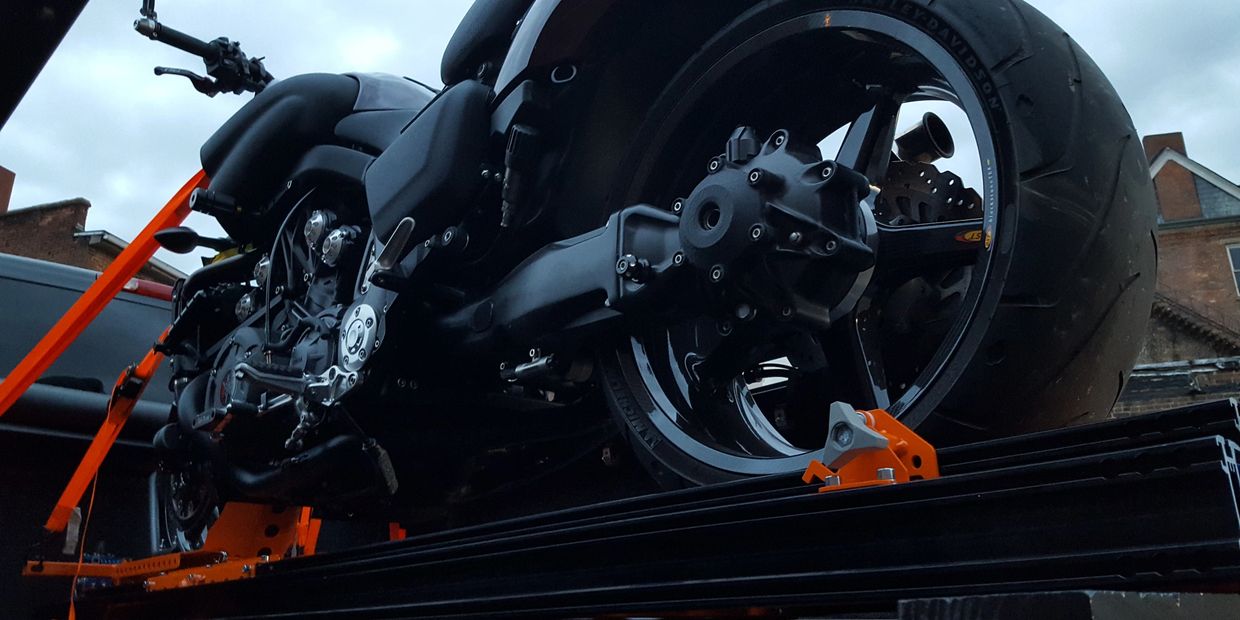

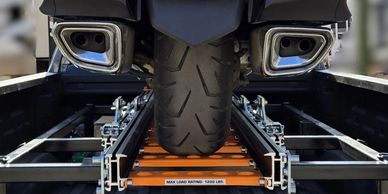

Wheel Chock
Wheel Chock
- Fully adjustable to accommodate 110mm - 130 mm width, 23" - 31" OD front tires
- Adjustments are quick and simple
- Adjustable ratchet strap anchor points eliminate fork loading
Load Angle
Wheel Chock

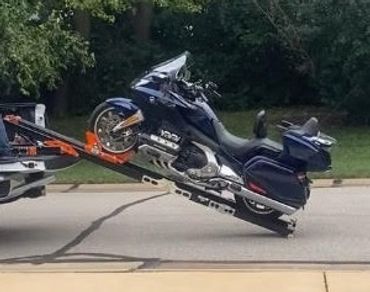

- Load 1200 lbs up to 36" deck height for certain model bikes
- Load heights to 60" or higher with the AC001 extension (Motorcycles needing a shallow load angle (Road Glide, Ultra, Chieftain, Gold Wing, etc. will require the AC001 extension with deck heights >30")
Modular

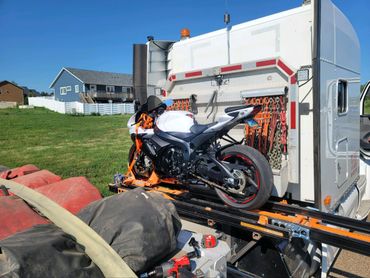

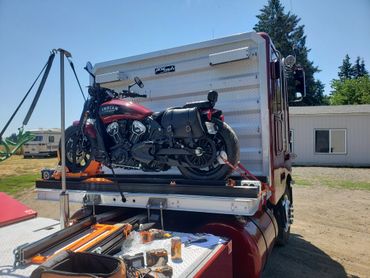

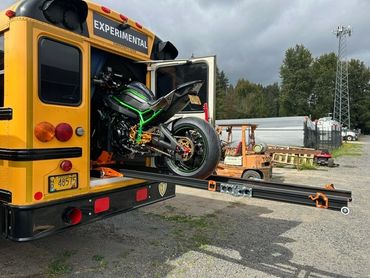

- System can be adapted to work with Vans, Pick-ups, RVs, Buses, Semi trucks, and Trailers

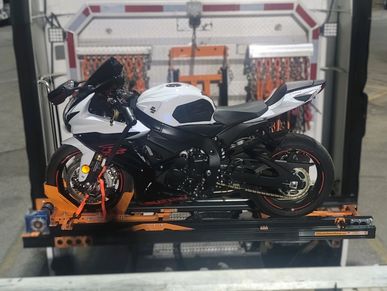

Low Ride Height
- Raises bike just 2 1/2" off surface of the cargo bed (AC012 kit adds an additional inch ride height)
- Allows ramp to be used with vans with low overhead

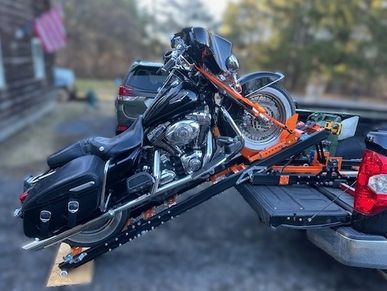

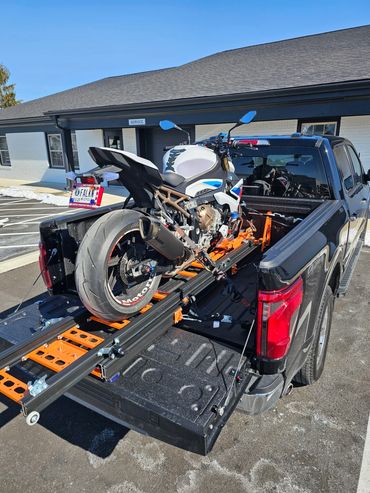

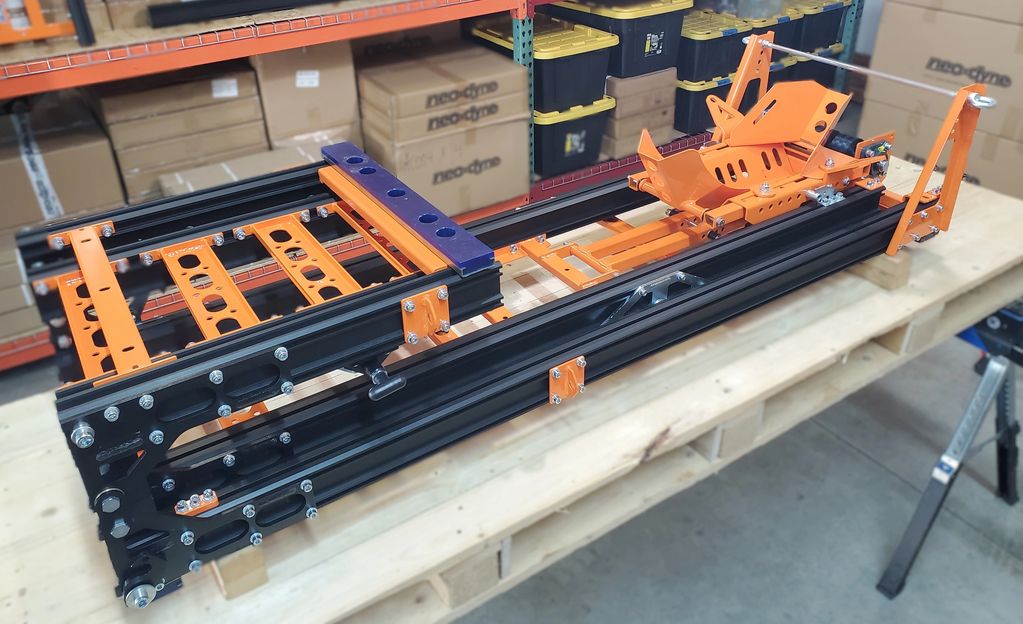

AUN250 Folding Ramp

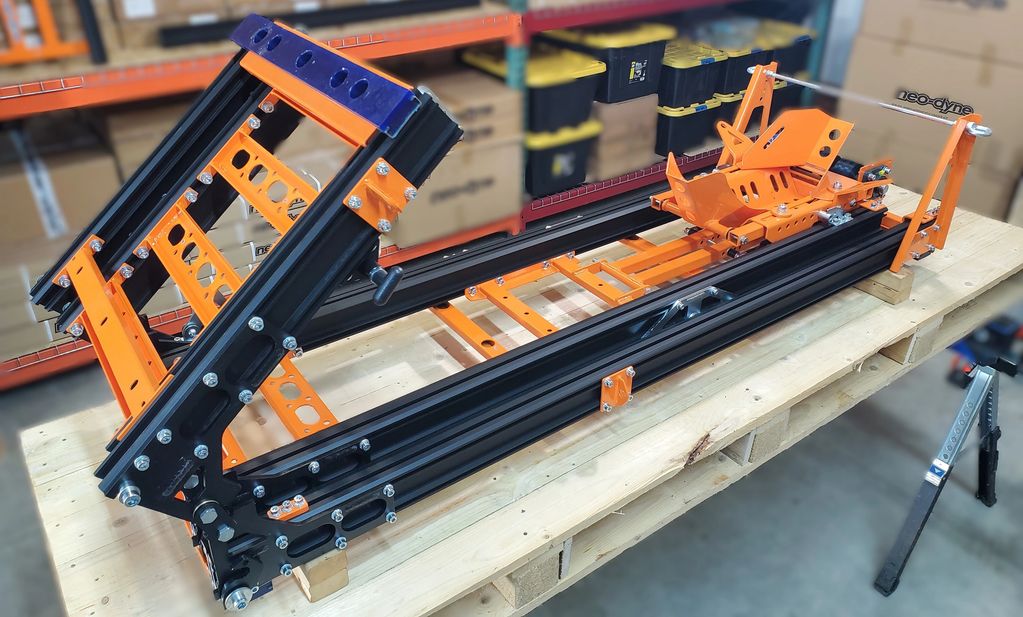

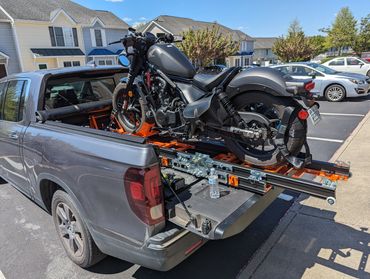

The next generation in motorcycle ramps, introducing the AUN250 folding ramp for short bed trucks. All the lifting capabilities of the AUN210, using the same accessory line, but the AUN250 can fit inside the closed tailgate of most short bed trucks (after unloading the bike).
Ramp shown with AC012 system attached.
Using 4x proprietary hinges, the rear section of the ramp, which spans the tailgate, folds up.
The AUN250 can be customized to fit bed lengths from 54" to 82" and will fit under any tonneau cover on the market.
Expenses
AUN250
AUN250: Folding Ramp (Assembled)
$3650
Photo shows AC012 system installed (not included)
AUN210
AUN210: Non-folding Ramp (Assembled)
$3350
Assembled ramp (currently available only for local pick up).

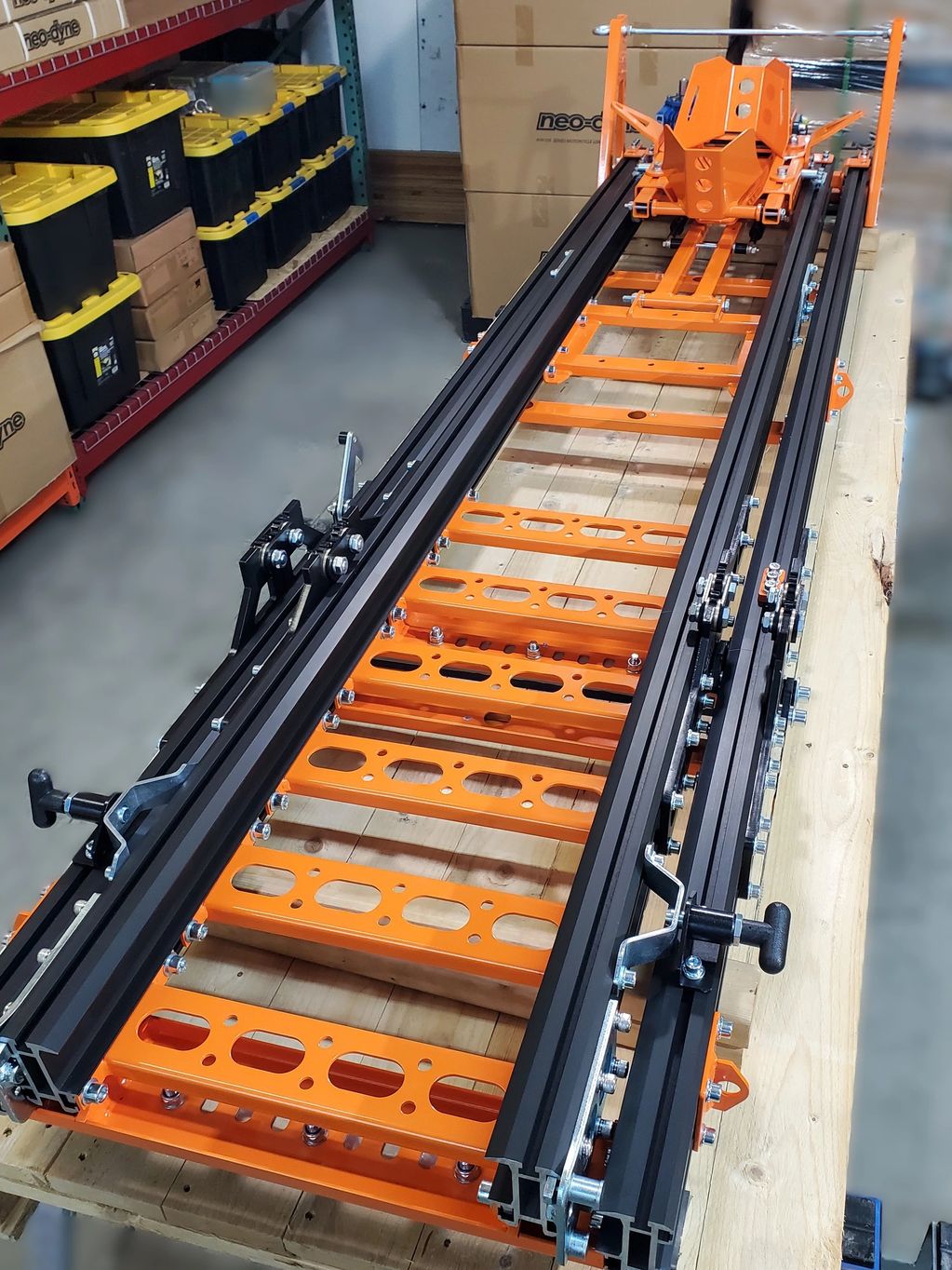

AUN210: Non-folding Ramp Kit
$3100
All the components needed to assemble a COMPLETE RAMP, including aluminum beams (not in photo), at a lower cost.
Accessories

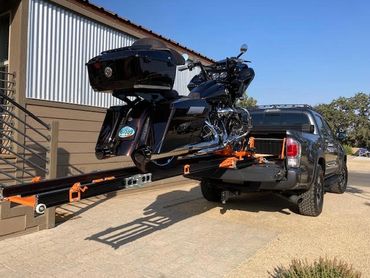

AC001: Tilt Ramp Extension Kit
$385
Increase lift height up to 60" with this tilt ramp extension (certain model bikes). Touring bikes typically need a shallower loading angle, so this extension is required for load heights > 30". Custom length AC001s available up to 46".

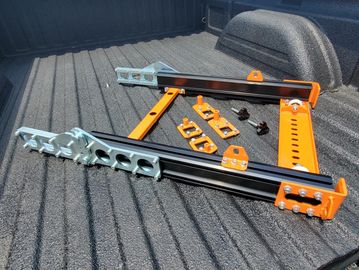

AC012: Bolt-Less Tie Down Kit
$450
Ingenious mounting system which requires no drilling in the cargo bed, using either ratchet straps or turnbuckles (not supplied) to secure the ramp to the vehicle. The kit includes heavy polyurethane pads mounted under the ramp to keep it off painted surfaces. This is the only ramp on the market that can be mounted without bolts and does not prevent from pulling a trailer/camper!

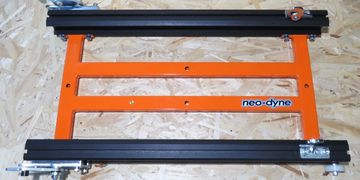

AC004: Base Extension Kit (Long beds only)
$475
Extension to span the length of the tailgate. This extension quickly locks onto the base (lower ramp) to allow loading with the tailgate in place. Removing the extension, the tailgate can be shut with the bike (certain models) loaded.
Ramps shipped on custom pallets via truck freight which require individual shipping quotes.
